제품 상세 정보:
|
| geotextile 유형: | 비직조 지질섬유 | 재료: | PP(폴리프로필렌) PET(폴리에스터) |
|---|---|---|---|
| 무게: | 100-800g | 애플리케이션: | 건축 건설, 댐, 보강, 토목 건설, 엔지니어링 |
| 예어: | 부직포 니들 펀치 지오텍 스타일, 부직포, 폴리 에스테르 / PP 부직포 지오텍 스타일, 애완 동물 부직포, 도로 용 고품질 지오텍 스타일 | 용법: | 생태학적 경사면 보호 시스템, 건설 프로젝트, 댐 등, 토목 환경 |
| 파단시 신장: | 40%-80%, | 패키지: | PP 짠 가방, Customerised |
| 섬유 종류: | 스테이플 섬유, 폴리에스터 연속 필라멘트, 장섬유 |

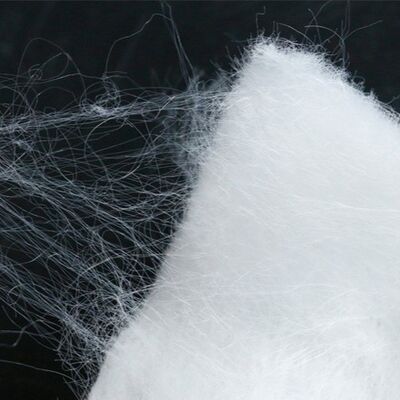

Our Filament Non-woven Geotextile is engineered utilizing a high-precision, direct-spinning thermal process where first-grade polyester chips are converted into unbroken, continuous micro-strands. This infinite fiber network is then densely needle-punched, creating a fabric with an extraordinarily high tensile modulus and exceptional multi-directional puncture resistance. Unlike staple fibers, the unbroken filament matrix ensures the material absorbs tremendous physical impact and lateral movement without stretching or tearing. It serves as an elite-level hydraulic separator and reinforcing base, preventing different soil horizons from intermixing while allowing massive water volumes to pass through smoothly under heavy structural loads.
Specification |
100 |
150 |
200 |
300 |
400 |
500 |
600 |
800 |
Remark |
Quality deviation per unit acreage% |
-6 |
-6 |
-6 |
-5 |
-5 |
-4 |
-4 |
-4 |
|
Thickness,mm≥ |
0.8 |
1.2 |
1.6 |
2.2 |
2.8 |
3.4 |
4.2 |
5.5 |
|
Width deviation for range,%m |
-0.5 |
||||||||
Mightiness at break,KN/m ≥ |
4.5 |
7.5 |
10.0 |
15.0 |
20.5 |
25.0 |
30.0 |
40.0 |
Vertical and horizontal |
Elongation at break,% |
40-80 |
||||||||
CBR bursting strength,KN≥ |
0.8 |
1.4 |
1.8 |
2.6 |
3.5 |
4.7 |
5.5 |
7.0 |
|
Effective aperture O90(O95)mm |
0.07-0.20 |
||||||||
Vertical osmotic coefficient,cm/s |
K x(10-1-10-3) |
K=1.0-9.9 |
|||||||
Tearing strength, KN≥ |
0.14 |
0.21 |
0.28 |
0.42 |
0.56 |
0.70 |
0.82 |
1.10 |
Vertical and horizontal |
Q1: Are you manufacturer or trading company?
A: We are manufacturer.
Q2: Which country did you export?
A: Our products have been exported to more than 20 countries all over the world, including USA, Canada, Poland, Switzerland, Japan, Southeast Asia, The Middle East, Africa, Australia etc.
Q3: What is your MOQ?
A: Normally, our MOQ is 20' container. But we could accept LCL for first trial order.
